Steam Injection Humidifier SIH

Intelligent and energy-efficient use of existing pressurised steam

In many facilities and industrial production areas, pressurised steam is used for standard operational processes and applications. The HygroMatik steam injection humidifier SIH is connected to an existing steam network and makes the pressure steam available for energy-efficient air humidification. Typical areas of application are e.g.

Hospitals
Laboratories and clean rooms
Pharma
Chemie
Food
Power plants
And many more

Wherever sufficient pressurised steam is already available, it can be used for air humidification by intelligently integrating the HygroMatik SIH steam injection humidifier into existing or new building and air conditioning systems. Air humidity is a decisive factor for a healthy indoor climate. In addition, the controllability of air humidity plays an important role in the control of sensitive processes and the optimisation of product quality.

The HygroMatik SIH steam injection humidifier humidifies with condensate-free saturated steam and enables short humidification distances for space-saving installation.

Product description

High performance in quality and hygiene – available in two versions

All components are developed in Germany and assembled according to requirements for each project. The HygroMatik steam injection humidifier SIH is available in two versions in order to optimally adapt the system to the respective application areas.

In most areas of application, the steam injection humidifier SIH stainless steel grey cast iron meets the requirements for optimum integration into the overall system. Pure steam is used for applications with demanding hygiene regulations (e.g. hospitals, laboratories and clean rooms).

The steam injection humidifier SIH 100% stainless steel meets these increased requirements. All steam-conducting components in this version are made of stainless steel 1.4401 and therefore also fulfil the increased requirements for corrosion resistance in pure steam operation.

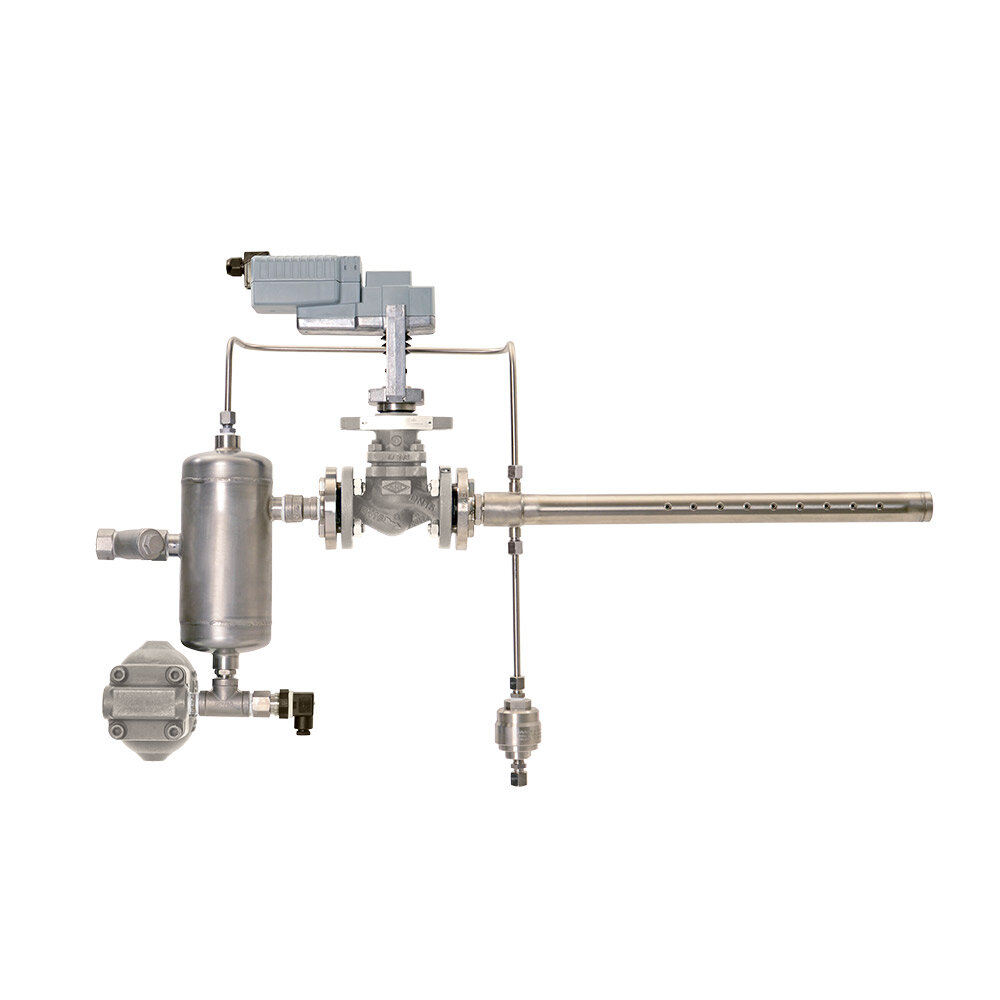

Steam injection humidifier SIH stainless steel

Performance classes:
SIH 20 VA (max. steam output 180 kg/h)
SIH 40 VA (max. steam output 730 kg/h)

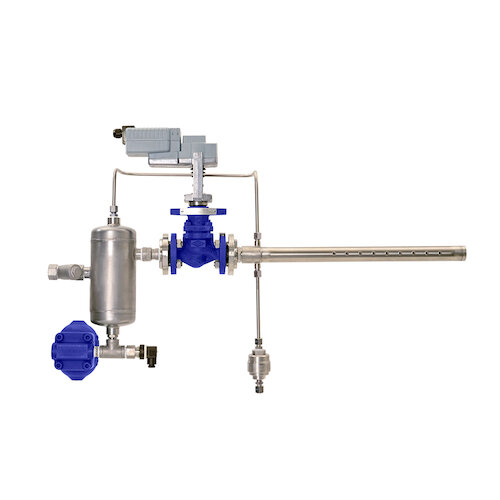

Steam injection humidifier SIH stainless steel grey cast iron

Performance classes:
SIH 20 CI (max. steam output 180 kg/h)
SIH 40 CI (max. steam output 730 kg/h)

Stainless steel steam lances
with integrated heating piping

Light, durable and optimally protected

The HygroMatik steam injection humidifier SIH is equipped with a steam lance heating piping. Therefore, an additional sheathing is not necessary for efficient humidification. The amount of condensate that reduces the efficiency is kept to a minimum.

Precise manufacturing made of high-quality stainless steel

In order to guarantee a long service life, the steam lances are made of high-quality stainless steel. Their low net weight allows a simple and fast installation. The low-noise steam nozzles draw steam centrally from the core stream, the driest area of the steam lance. In addition, the nozzles are positioned against the airflow which ensures fast distribution and a short humidification distance.

Efficient heating system: hygienic protection against condensate formation

The internal, self-contained steam lance heating system is located at the lowest point of the steam lance. This allows any condensate to be evaporated again immediately. The lightweight and easy to maintain thermal steam trap drains condensate from the heating system. The heating system is fed directly from the steam dryer.

Low space requirement due to internal heating system
Fast regulation during start-up by preheating the steam lances
Low heating of the air flow
Protection against deposition

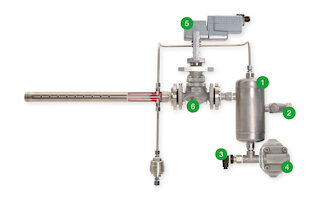

Six components, one system – compact and flexible

The HygroMatik SIH is the only pressure steam system that offers six components in one compact unit. Depending on the project requirements, the SIH is individually configured and confectioned. The standard flanged connections, the compact dimensions and the low net weight allow easy installation – even in difficult installation conditions. In order to save space or keep accesses free, a 90° angled mounting is optionally possible.

High-performance steam dryer
The stainless steel steam dryer separates the condensate from the steam using a spiral-shaped control system and is 100% maintenance free.
Replaceable strainer
The high-quality stainless steel strainer protects the control valve and the steam trap from contamination from the steam network. The internal fine mesh strainer can be cleaned or easily replaced if necessary.
Reliable start-up safety feature
The start-up safety feature activates humidification only after a certain operating temperature has been reached. This effectively prevents condensate from the steam network from entering the air-conditioning duct.
Powerful steam trap
The robust, tight-closing ball float steam trap drains off the condensate. Due to the fast reacting principle and the high capacity, even larger quantities of condensate can be safely discharged, e.g. when starting up the system. The closed system prevents steam losses.
Bus-capable SIH actuator
Safety through automatic emergency control function, optionally pneumatically controlled (0.2-1 bar)
SIH control valves
Check the steam quantity with equal-percentage characteristic curve

Optimum control of steam quantity – fast and precise

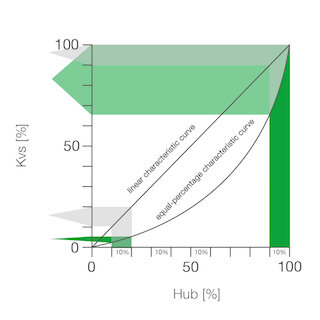

The bus-capable actuator ensures optimum automatic control through direct connection - without adapter. The special HygroMatik control valve controls the steam quantity with equal-percentage characteristic curve.

The advantages:

A particularly precise control in the lower control range
Fast adaptation to high humidity requirements in the upper control range

SIH options

To better adapt our SIH pressurised steam humidifiers to the requirements of your projects, we offer the following optional components: from grey cast iron to stainless steel is possible.

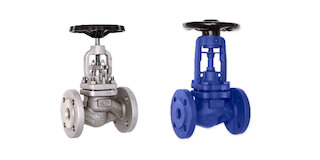

SIH shut-off valves

The recommended optional shut-off valve ensures that, if required, the steam flow can be 100% shut off for any duration, independent of the control valve.

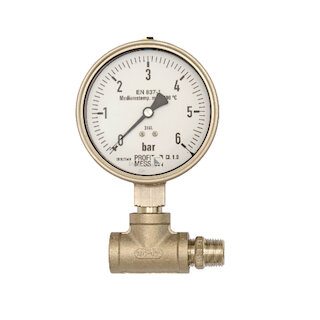

SIH manometer

The manometer for pressure indication allows the current operating pressure to be checked.

Connection and retrofitting

A flange connection for connecting to the on-site steam network is available. Conversion from grey cast iron to stainless steel is possible.

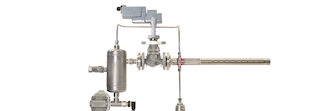

Installation schematic SIH steam injection humidifier

Applications

Production and manufacturing processes

Print and paper.

In the print and paper industry, regulating the air humidity is necessary to ensure high-quality goods of materials and processes, as they both react strongly to humidity level changes.

humidification system for constant humidity for brilliant printing results

Wood processing.

Since timber is a natural raw material which absorbs and emits moisture in accordance with its surroundings, indoor air humidity levels can significantly affect the use and production process of wood.

Automotive and aerospace.

In the automotive and aerospace industries, it can be challenging to maintain and control stable temperatures, especially during the production process e.g. in the foundry, painting line, and machinery room.

air humidification in the automotive and aviation industries

Electronic and high-tech industry.

Electrostatic discharge (ESD) is more likely to happen if the air is too dry (less than 45% relative humidity). With the correct humidity level, costly damage to sensitive components or disruption to production processes can be prevented.

stable process humidification in the electronics and high-tech industries

Laboratories and clean rooms.

Temperature and relative humidity play a significant role in laboratories and clean rooms as they require stable, controllable atmospheric conditions in order to achieve comparable and consistent work results.

Food and luxury food.

Quality and freshness in food production can only be achieved through optimum air humidity. The correct moisture levels can stop foods from drying out and losing weight. At the same time, the ideal humidification encourages the ripening process of certain foods.

air humidification systems for the food industry

Print and paper.

In the print and paper industry, regulating the air humidity is necessary to ensure high-quality goods of materials and processes, as they both react strongly to humidity level changes.

Wood processing.

Automotive and aerospace.

Electronic and high-tech industry.

Laboratories and clean rooms.

Food and luxury food.

Public buildings and offices

Museums and galleries.

Air humidification is vital in museums and galleries as they often house invaluable artefacts which require a regulated and consistent indoor climate to avoid damage.

Hospital and doctors’ surgeries.

As the treatment and recovery of patients is the main focus in hospitals and doctors’ surgeries, a healthy environment plays a critical role in the quality of services provided by a medical facility.

Cruise ships and offshore.

Cruise ships require a vast amount of cooling performance for air-conditioning. Adiabatic cooling systems are an efficient and cost-effective solution. Regulated air humidity creates a pleasant, healthy environment on board.

Museums and galleries.

Air humidification is vital in museums and galleries as they often house invaluable artefacts which require a regulated and consistent indoor climate to avoid damage.

Hospital and doctors’ surgeries.

Cruise ships and offshore.

Downloads

List view

Brochures

Mark all

SIH brochure

Steam injection humidifier

Open Save

Mark

MultiLance brochure

Steam dispersion humidifier for extreme short absorption distances

Open Save

Mark

Specifications

Mark all

SIH specification

Steam Injection Humidifier

Open Save

Mark

Manuals

Mark all

SIH

manual

Open Save

Mark

Actuator for ari valves

Steam injection

Open Save

Mark

Download now

More simular products.

Low- and High Pressure Systems LPS and HPS.

Our adiabatic humidification systems LPS and HPS were developed for efficient use in comfort and process humidification. The systems convince by their high efficiency and exact controllability. The additional cooling effect ensures a reduction of heat loads.
